LGP Components
Laser-dot, engraved-line, and screen-printed light guide plates for OEM integration.
Optical Platform / Product Family
Custom LGP Light Guide Panels
Patterned PMMA components and finished edge-lit systems configured by panel geometry, optical process, light-entry direction, luminous effect, and final application.
What It Is
A slim optical panel that turns edge light into a bright, even surface.
A light guide panel (LGP), also called an LED light guide plate, uses edge-mounted LEDs and a precision optical pattern to redirect light across a thin, evenly illuminated surface.
It is ideal for retail displays, advertising signage, ceiling features, translucent walls, furniture, OEM lighting modules, and custom illuminated products.
Custom LGP Manufacturing
Light guide plates engineered around the size, surface, and light-entry path.
FH Lighting manufactures PMMA LGP components and finished LED light guide panel assemblies from customer drawings. Optical pattern density, LED entry, diffuser, reflector, cable exit, and support structure are reviewed together so the luminous surface fits the final display or architectural system.
Finished LED Panels
Diffuser, reflector, LED strip, wiring, and edge protection configured as one assembly.
Custom Geometry
Rectangular, round, curved, linear, polygonal, and drawing-based shapes.
Project Review
Voltage, control, color, mounting, production, packing, and transport options confirmed before sampling.
Light Entry Layout
LED input is selected around optical span and panel geometry.
Short spans can be evaluated with one-edge input. Longer rectangular panels generally use two opposing edges, while large or near-square panels are reviewed for four-edge input and balanced thermal loading.
Panel Family
Choose the component, finished structure, geometry, or light effect your project needs.
Light guide panels are the optical platform. Frameless panels are one finished construction made from that platform, while installation-ready, custom-shape, and tunable-white systems answer different project needs.
Frameless Light Guide Panel
Opal face, patterned PMMA, concealed edge LEDs, reflective backing, and a taped or protected edge.
View Frameless Details →

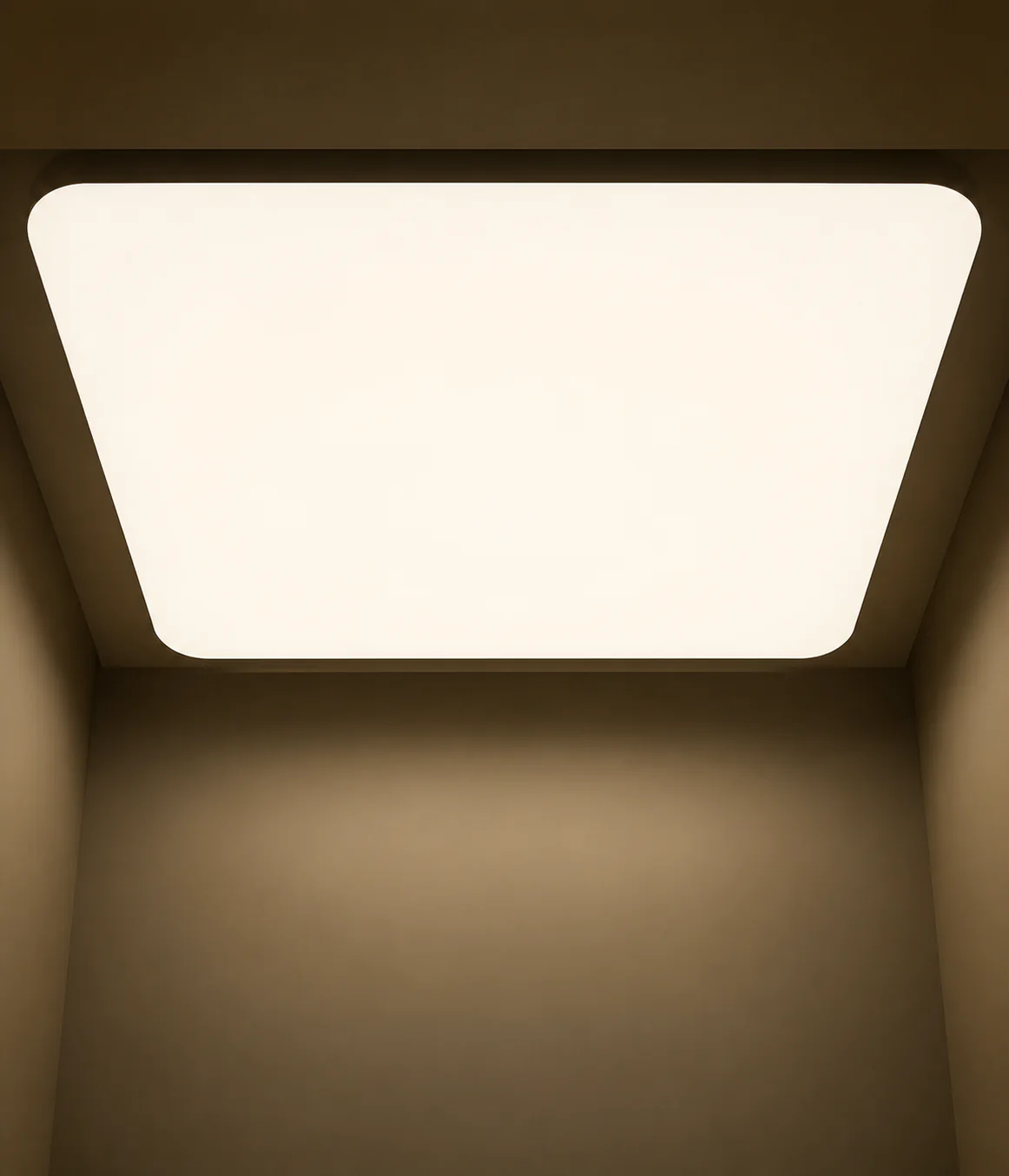

Installation-Ready Panel
A finished luminous face with concealed mounting, thermal management, wiring, and rear protection.
View Installation Details →
Custom-Shape Panels
Round, curved, polygonal, linear, and modular luminous surfaces developed from approved drawings.
View Shape Options →
Tunable White Panels
Static white, warm-to-cool white, RGB, or RGBW systems selected with compatible control.
View Light Options →Panel Formats
Flexible, linear, and custom shapes use the same light guide platform.
Format names describe geometry and installation, not separate optical products. The final build is selected after reviewing the panel span, bend requirement, LED entry direction, luminous finish, and support structure.
Send drawings for review →
Curve direction, bend radius, optical pattern, LED entry, and support method are reviewed together.
Rigid Standard Panel
Flat PMMA light guide construction for displays, ceilings, walls, furniture, and OEM assemblies.
- Best for
- Stable flat luminous surfaces
- Confirm
- Size, thickness, LED entry, and mounting
Linear Light Guide
Long, narrow light guide sections for coves, shelves, counters, corridors, and continuous features.
- Best for
- Long runs with a controlled luminous width
- Confirm
- Run length, joints, feed direction, and support
Flexible or Curved Light Sheet
Thin curved formats reviewed around the material, allowable bend, brightness target, and installation surface.
- Best for
- Curved features and shallow-profile surfaces
- Confirm
- Bend radius, curve direction, span, and fixing method
Custom Geometry
Round, oval, polygonal, organic, or joined panels developed from approved project drawings.
- Best for
- Project-specific outlines and modular surfaces
- Confirm
- CAD outline, joints, finish, wiring, and packing
Environmental Protection
Waterproofing is configured at the LED system level. For damp or semi-outdoor locations, FH selects a protected LED strip, sealed connectors, controlled cable entry, and a suitable driver enclosure. Final protection is confirmed for the complete electrical assembly and installation conditions.
Custom Process
A practical path from concept to production.
Project brief
Share drawings, size, quantity, LED color, installation position, and environmental requirements.
Optical proposal
Material, light guide structure, LED strip selection, and diffusion layer are matched to the brief.
Sample testing
Brightness, uniformity, edge detail, color temperature, and assembly are checked during the 7-15 day sample production stage.
Production & packing
Panels are inspected and packed for the customer-selected shipping method; transit time and freight are separate from production.
Need help preparing the brief? Read the Light Guide Panel Design Guide for a practical specification checklist and light-entry selection notes.
FAQ
Key details buyers usually confirm first.
What does LGP mean in LED lighting?
LGP means light guide plate or light guide panel. It is a patterned optical sheet, usually PMMA, that receives LED light at one or more edges and distributes it across a larger luminous surface.
Can the panels be made in custom sizes?
Yes. Panels can be produced in small-format sizes, large-format panels, or tiled systems for bigger illuminated surfaces.
What color temperatures are available?
Color temperature, single-color output, tunable white, RGB, and RGBW configurations are selected around the customer brief and the required LED system.
What information is needed for a quote?
Panel size, quantity, application, desired light effect, material preference, installation method, environmental exposure, and frameless requirements are the most useful starting points.
Where are light guide panels commonly used?
Retail displays, signage, architectural ceilings, translucent walls, furniture lighting, exhibition booths, OEM products, and industrial applications.
How long does a custom sample take?
Sample production normally takes 7-15 production days after drawings and specifications are confirmed. Courier or freight transit time is not included.
How is shipping arranged?
Courier, air, sea, or a nominated forwarder can be selected according to size, schedule, and destination. Transit time and freight are separate unless they are included in the quotation.
